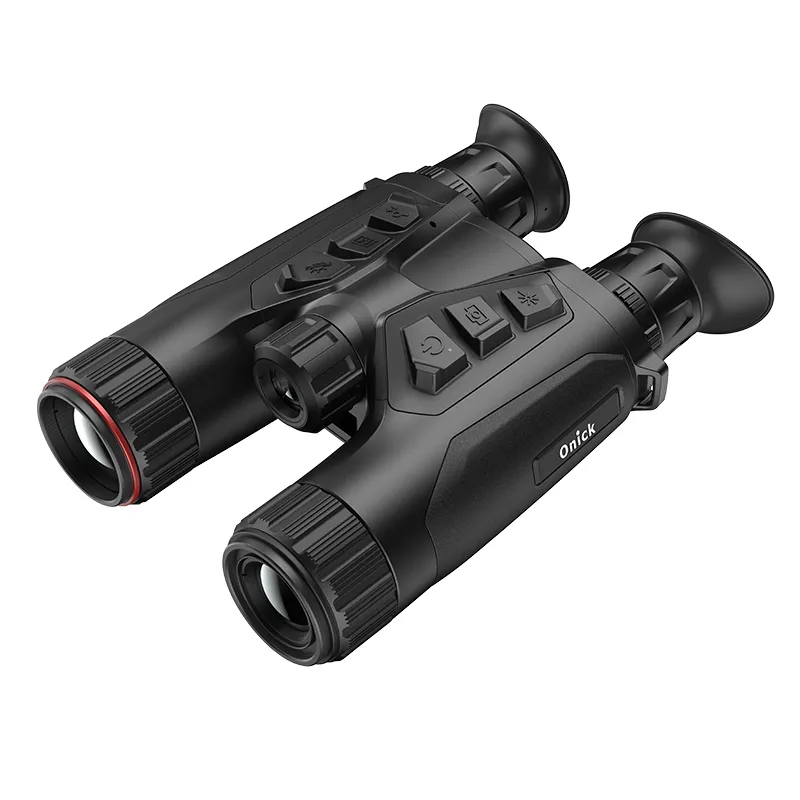

Telescópio de Imagem Térmica de Fusão Binocular RE384
产品型号
企业性质
views
Product Details
Bird watching, animal search, and rescue scenarios.
Thermal imaging | |
Image sensor | VOx uncooled focal plane array |
Maximum resolution | 384 x 288 |
Frame rate | 50 Hertz |
Pixel spacing | 12 micron |
Response band | 8μm to 14μm |
NETD | Less than 20 mK (@25°C), F#=1.0 |
Lens (focal length) | 35mm, F1.0 |
Focusing mode | Manual focusing |
Detection distance | 1800 m |
Minimum focusing distance | 3.5 m |
Blow up | 4.0-32 (8x) |
Field of view (H×V) | 7.5° x 5.7° |
Visible light | |
Image sensor | 1.88-inch progressive scan CMOS |
Maximum resolution | 2560 x 1440 |
Focus Distance | 31mm, F1.2 |
Minimum working distance | 3m |
Minimum illumination | 0.001 lux |
Focusing mode | Manual focusing |
Blow up | 2.9-23.2 (8x) |
Field of view (H×V) | 13.9° x7.8° |
Intelligent infrared fill light | There are |
Night range | 400 m |
Image display | |
reveal | 0.49 inch, OLED, 1920×1080 |
Color palette | Black heat, white heat, red heat, fusion; Optics: Day, night, automatic |
FFC (Flat Field Correction) mode | Automatic, manual, external correction |
Diopter (range) | -5D~+3D |
Brightness control | There are |
Tone adjustment | Cold, warm |
Contrast adjustment | There are |
System | |
Record video | There are |
Take a picture | There are |
Recorded AT | There are |
Standby mode | There are |
store | Built-in EMMC (64 GB) |
Hot spot tracking | There are |
Electronic compass | There are |
GPS | There are |
Local album | There are |
Power source | |
Battery type | Replaceable and rechargeable lithium-ion batteries |
Battery operating time | ≥6h (25°C, hot spot off) |
Type-C power supply | 5V DC, 2 A |
Support external power supply | |
routine | |
Class of protection | IP67 protection rating |
dimension | 138.2 mm x 68.4 mm x 212.4 mm |
Operating temperature | -30°C ~ +55°C |
weight | 780g (without battery) |
Range of pupil distance adjustment | 60 mm to 74 mm |
Install adapter | 1/4“-20-UNC |
Laser rangefinder | |
Laser safety class | Class 1 |
Wave length | 905nm |
Maximum measuring distance | 1000m |
Measurement accuracy | ±1 m |
Minimum measuring distance | 10m |
Infrared complement | |
Infrared wavelength | 850 nm |
Beam Angle | Adjustable 7.6-11.5° |
